Product Details:
|
| Product Name: | Smd Led Chip 3030 | Viewing Angle(°): | 120 |
|---|---|---|---|
| Power: | 1-3W | Luminous Flux(lm): | 42-45 |
| Current: | 300mAh | Emitting Colors: | Red Green Blue Whie Orange Pink |
| TC: | 2000-2200K | Luminous Intensity: | 32-40lm/w |
| High Light: | 40lm Automobile Light Bulbs,EMC Automobile Light Bulbs,SMD 3030 Led Chip |
||

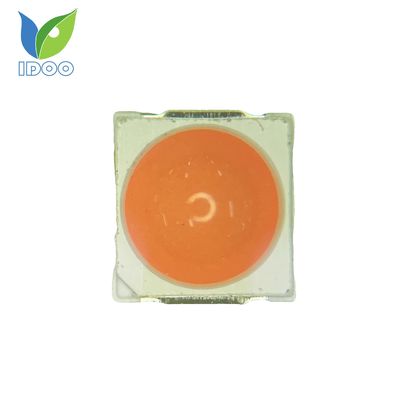

EMC High Bright 3W Automobile Light Bulbs SMD 3030 Led Chip 40lm
1-3W Automobile Light Lamp EMC High Bright 42-45lm Top Led Smd Led 3030
Product Description
| Product | Color | Wave length | Lumen | VF & IF | Power |
| Model | (nm) | (lm) | (watt) | ||
| IDOO-M3030B | Blue | 460-470 | 20-30 | 2.8-3.4v & 350mA | 1w |
| IDOO-M3030G | Green | 500-510 | 60-80 | 2.8-3.4v & 350mA | 1w |
| IDOO-M3030AM | Amber | 600-610 | 25-35 | 2.0-2.6v & 400mA | 1w |
| IDOO-M3030Y | Yellow | 585-595 | 25-35 | 2.0-2.6v & 400mA | 1w |
| IDOO-M3030R | Red | 620-630 | 20-35 | 2.0-2.6v & 400mA | 1w |
| Deep Red | 640-660 | 100-110 | 2.0-2.6v & 400mA | 1w |
Product Features
1. Pure Copper Base-High heat conductivity 400W/m·K
2.Pure 99.99% gold wire bonding , good ductility, resist high current shock
3. 50,000 hrs life span
4. 2 years warranty
5. No risk of mercury emission, environmental friendly.
5. Application: Widely applied to street light, flood light, high bay light, down light, LED bulb, spot light, panel light, etc.
1. No risk of mercury emission, environmental friendly.
2. Well-known chip material, EPILEDS, BRIDGELUX, EPISTAR.
3. High flux per LED Industry best moisture sensitivity.
4. Ten years experience designing , RD, manufacturing of high power led light Source.
5. RoHS, CE, FCC compliant
